The plan was to get going an old mother board out of a HP All In One PC which I was using for my ham radio software for FT8, well I upgrade to a pair of mini lenovo's PC's, time when on and I lost the power supply for the hp mother board.

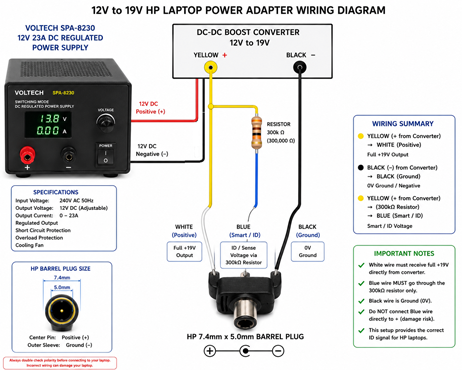

So I had to work out how to use a Power supply Voltech 240V-12V (23A) 13.8V Output to power the HP board, so a bit of research and AI, I came up with using a 12V to 19V 10A 190W DC-DC Boost Step Up Power Converter Voltage Regulator Module and a 7.4x5.0mm DC Tip Plug Round Connector Laptop Power Cable For HP / for Dell N with two resistors one a 220k and the other a 120k.

The mother board now powers up and runs this web site as you are reading, yes the whole site runs off this mother board, its a i7 with 12G memory and runs on Ubuntu 26.04, will post a image of the mother board soon.

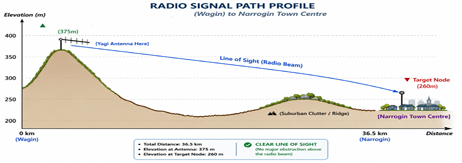

New Plans for MeshCore here in Narrogin and Wagin are on the way, Repeaters are allready installed in Narrogin and Wagin Frequency 923.125 MHz and another Repeater to be built and installed at my brothers shop, I have to ask him yet. here is our signal report plan, I've blanked out the locations of Repeaters, to view the Narrogin Map of Mesh devices use the button on the top of the page called MESH MONITIOR, also dont forget to download you MeshCore app to join the off grid mesh community
